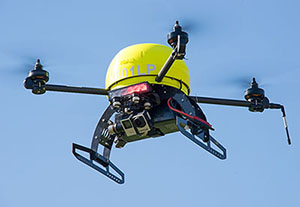

Leptron RDASS with Emergency Strobe Lights

Accident Investigation

Leptron RDASS Kit

Dual Gimbal





Leptron RDASS™ Precision
Unmanned Quadcopter

The Rapidly Deployed Aerial Surveillance System (RDASS) Precision by Leptron UAS, Inc. is a vertical takeoff and landing multirotor platform used for stability, versatility and professional-grade remote sensing. The RDASS Precision model offers the same aerodynamic aircraft design as the RDASS HD, but it integrates a military-grade autopilot system with precision GPS and an advanced inertial navigation system. The RDASS is commanded from Leptron's Precision Ground Control Station (PGCS) that supports autonomous flight operations with the option of taking direct control at any time. The PGCS also offers the pilot superior situational awareness by displaying aircraft position on a moving map and real-time video from the aircraft's camera(s).

The RDASS camera mounting system accepts Leptron stabilized or fixed gimbal configurations. Each gimbal is perfectly balanced to minimize power consumption to optimize in-air performance. Additionally, the RDASS Precision can be equipped with navigation LEDs, red and blue strobe lights, and additional video viewing stations. With dozens of user defined system configurations available, the RDASS Precision is an ideal choice for law enforcement and military operations.





  • RDASS Model: Precision

  • Airframe Materials: Lightweight 3D Printed ABS and Carbon Fiber

  • User Selectable Cameras

  • Payloads: Fixed, Stabilized Single or Dual Camera Combinations

  • Video: High Definition Output, HD Remote Video Streaming Compatible

  • Endurance: 20 Minutes

  • Flight Modes: Manual and Fully Autonomous

  • Auto Landing and Motor Shut-off

  • Intelligent Fault Detection: Auto Return Home due to either Lost Link or Low Battery

  • Dome Colors: Black, Red, or Yellow







Platform Type
Rotor Tip to Rotor Tip Dimensions
Operating Temperature
Take-off Weight
Weight without Battery
Hovering Accuracy (GPS Mode)
Maximum Yaw Angular Velocity
Maximum Tilt Angle
Maximum Horizontal Flight Velocity
Wind Limits

Vertical Speed Limits
Supported Flight Battery
Operational Ceiling
Maximum Payload
Operational Range
Maximum Power Consumption

Multi-Rotor (four fixed-pitch rotors)
31 1/2 inches (80.1 cm)
-10°C – 50°C
7 lbs. 13 oz. (3539g)
5 lbs. (2269 g)
Vertical: ±31 in. (0.8 m) Horizontal:  ±98 in. (2.5 m)
180°/s
35°
35 mph (30 knots, 15 m/s)
35 mph (30 knots, 15 m/s) continuous or gusts
of 25 mph (22 knots, 11 m/s)
800 feet/min. (4.1 m/s)
LiPo 6S
12,000 feet DA (3650 m)
1 lb. 8 oz. (680 g)
1.5 mile (2.4 km)
800 Watts (1.1 hp)

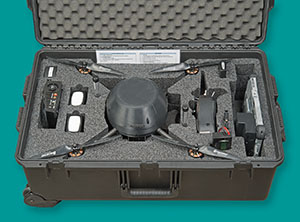

  • RDASS Precision Quadcopter

  • 2 to 4 Flight Batteries

  • Radio Wireless Remote Control

  • Precision Ground Control Station (PGCS)

  • RDASS Precision Controller

  • Charger, 2 Channel

  • Maintenance Kit

  • Hard-Sided Case with Pre-Cut Foam

Leptron RDASS Precision Kit

Leptron RDASS Precision Kit



  • Stabilized Single-Camera Gimbal
    with GoPro Hero4 Black

    Eliminate tilt and vibration to capture high-quality video and still images used for inspection, search and rescue, aerial photography, and many other applications with the Stabilized Single-Camera Gimbal.

  • Stabilized Dual-Camera Gimbal with Infrared (IR) and GoPro Hero4 Cameras
    The Stabilized Dual-Camera Gimbal by Leptron UAS, Inc. integrates both Infrared (IR) and Electro-Optical (EO) camera technology used for a wide range of UAS applications. Precision three-axis tuning prevents video rotation caused by aircraft movement. Additionally, the gimbal’s vertical camera position is easily adjusted in-flight.

  • Fixed Sony Alpha a6000 Camera Mount
    Leptron designed the a6000 Camera Mount to provide a lightweight, versatile and advanced aerial data acquisition solution. The image processor produces high-resolution 24.3 MP still images and full HD video for professional aerial data collection.

  • RedEdge Multi-Spectral
    The MicaSense RedEdge™ is an advanced, lightweight, multispectral camera optimized for use on small unmanned aircraft systems. RedEdge™ provides accurate multi-band data for agricultural remote sensing applications.

  • Leptron GeoReferencer
    The GeoReferencer is a camera add-on that uses its onboard GPS to provide a stand-alone geotagging and triggering solution. It easily integrates the Sony Alpha a6000 for a best-in-class aerial data collection solution.

Stabilized Single-Camera Gimbal with GoPro Hero4 BlackStabilized Single-Camera Gimbal

Stabilized Dual-Camera Gimbal with Infrared and GoPro Hero4 CamerasStabilized Dual-Camera Gimbal with Infrared and GoPro Hero4 Cameras

Fixed Sony A6000-Camera GimbalFixed Sony Alpha a6000 Camera Mount

RedEdge Multi-Spectral CameraRedEdge Multi-Spectral Camera



  • Video & Flight Data Observation

    Additional Video Out

    The Leptron Additional Video HDMI Out will securely stream video and flight data information from the RDASS to any HDMI compatible monitor that is within operating range of the aircraft.

    Additional Video Ethernet Out
    The Leptron Additional Video Ethernet Out securely stream video and flight data to remote viewing monitors. Simply log-in to control and configure live video streams from any location with web access and a standard web browsing application.



  • Aircraft Position Lighting
    & Emergency Red & Blue


    Navigation Lighting

    Leptron designed the aircraft navigation light ring to assist with maintaining visual orientation and position of the RDASS during both day and night operations. The pilot can select between strobe or steady illumination. The LEDs are bright and low power consuming.

    Emergency Lighting
    Designed for emergency responders, the RDASS can be equipped with the blue & red strobe to assist with aircraft positioning and signal that help is on the way.

Additional Video Out
Additional Video Out Additional Video Ethernet Out
Additional Video Ethernet Out

Navigation Lighting
Navigation Lighting

Emergency Lighting
Emergency Lighting



Adobe® Reader® is required

> Specifications PDF
> Leptron RDASS Precision Aircraft Flight Manual



See what the RDASS™ HD can do

RDASS™ Overview:   The Leptron RDASS™ HD offers simplicity with a single case for the helicopter drone, video, spare batteries and charger. The system offers stunning HD video and the video is from an RDASS taking video of both an Avenger and an RDASS in the air.

Leptron Utility Flights:  The Leptron RDASS™ and Avenger™ are used to inspect utility lines. The systems offer both HD video and infrared camera systems. In addition, live view camera views allow ground personnel the ability to safely view potentially dangerous insulators and high tension power equipment.

RDASS™ Industrial Use:  The Leptron RDASS™ HD is used for industrial safety inspections, quarry blasting and topographic mapping. The system utilizes a full autopilot in high winds and extreme conditions with a live HD camera view.

RDASS™ Law Enforcement:   The Leptron RDASS™ offers simplicity and portability for law enforcement. The system can be hand launched or landed. The system offers up close views and the ability to offer views for SWAT, accident scene reconstruction, search and rescue among many.

RDASS™ High Definition:   The Leptron RDASS™ HD offers the ability to view real time in High Definition. The system uses encrypted 720-1080p viewing with a 12” Daylight LDC or any other HDMI ready LCD. The range of the system is up to 1 mile.

RDASS™ Commercial:  The RDASS 4 is used by an aerial photography company with a stabilized camera gimbal and GoPro 3. The system was flown in fully autonomous mode with GPS autopilot mode from a wireless controller and by a novice pilot. The system has a real time video system with a heads up display that indicates on-screen data for altitude, satellites, signal strength and battery strength.

RDASS™ Real Estate:   The Leptron RDASS™ HD is used for aerial photography with a stabilized camera gimbal and GoPro to produce stunning HD photos and video. The simple and easy system can record views and viewpoints that were previously un-attainable.

RDASS™ Commercial:  The RDASS™ HD is flown with a GoPro Hero 3 and stabilized video for an automotive car race. The system has a real time video system with a heads up display that indicates on-screen data for altitude, satellites, signal strength and battery strength.

RDASS™ Commercial:   The RDASS HD uses a stabilized GoPro Hero 3 for video. The system can maintain 3D flight stability in winds up to 20MPH. The system shows the video output live on an LCD.
