Leptron RDASS with Emergency Strobe Lights

Leptron RDASS with RedEdge Multispectral Camera

RDASS System Kit

Dual Gimbal





Leptron RDASS™ HD
Unmanned Quadcopter

The Rapidly Deployed Aerial Surveillance System (RDASS) HD by Leptron UAS, Inc. is a professional-grade vertical takeoff and landing platform engineered for stability, versatility, and remote data collection. The RDASS HD is developed with a unique aerodynamic design and advanced electronics that maintain incredible aircraft stability even in unpredictable wind conditions. Enhanced safety features such as intelligent fault detection- automatically prompts the RDASS HD to safely return home and land in the event of lost communications, low battery, or when commanded by the pilot.

The RDASS camera mounting system accepts Leptron stabilized or fixed gimbal configurations. Each gimbal is perfectly balanced to eliminate excessive power draw caused by in-air leveling corrections. Additionally, the RDASS HD can be equipped with navigation LEDs, remote video viewing, and a ground control station. With dozens of user defined system configurations available, the RDASS HD is an ideal choice for industry professionals.





  • RDASS Model: HD (High Definition)

  • Airframe Materials: Lightweight 3D Printed ABS and Carbon Fiber

  • User Selectable Cameras

  • Payloads: Fixed, Stabilized Single or Dual Camera Combinations

  • Video: High Definition Output, HD Remote Video Streaming Compatible

  • Endurance: 20 Minutes

  • Flight Modes: Manual and Fully Autonomous

  • Intelligent Fault Detection: Auto Return Home due to either Lost Link or Low Battery

  • Dome Colors: Black, Red, or Yellow







Platform Type
Rotor Tip to Rotor Tip Dimensions
Operating Temperature
Take-off Weight
Hovering Accuracy (GPS Mode)

Maximum Yaw Angular Velocity
Maximum Tilt Angle
Maximum Horizontal Flight Velocity
Wind Limits

Vertical Speed Limits
Supported Flight Battery
Operational Ceiling
Maximum Payload
Operational Range
Maximum Power Consumption

Multi-Rotor (four fixed-pitch rotors)
31 1/2 inches (80.1 cm)
-10°C – 50°C
7 lbs. 13 oz. (3539g)
Vertical: ±31 in. (0.8 m)
Horizontal:  ±98 in. (2.5 m)
180°/s
35°
35 mph (30 knots, 15 m/s)
35 mph (30 knots, 15 m/s) continuous or gusts
of 25 mph (22 knots, 11 m/s)
800 feet/min. (4.1 m/s)
LiPo 6S
12,000 feet DA (3650 m)
1 lb. 8 oz. (680 g)
1.5 mile (2.4 km)
800 Watts (1.1 hp)
  • RDASS HD Helicopter

  • 2 Flight Batteries

  • Radio Wireless Remote Control with Video Monitor

  • Charger, 2 Channel

  • Maintenance Kit

  • Hard-Sided Case with Pre-Cut Foam

Leptron RDASS HD Kit with 7" Screen

Leptron RDASS HD Kit with 7" Screen



  • Stabilized Single-Camera Gimbal
    with GoPro Hero4 Black

    Eliminate tilt and vibration to capture high-quality video and still images used for inspection, search and rescue, aerial photography, and many other applications with the Stabilized Single-Camera Gimbal.

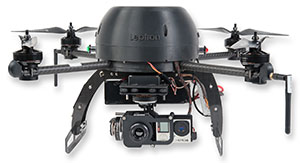

  • Stabilized Dual-Camera Gimbal with Infrared (IR) and GoPro Hero4 Cameras
    The Stabilized Dual-Camera Gimbal by Leptron UAS, Inc. integrates both Infrared (IR) and Electro-Optical (EO) camera technology used for a wide range of UAS applications. Precision three-axis tuning prevents video rotation caused by aircraft movement. Additionally, the gimbal’s vertical camera position is easily adjusted in-flight.

  • Fixed Sony Alpha a6000 Camera Mount
    Leptron designed the a6000 Camera Mount to provide a lightweight, versatile and advanced aerial data acquisition solution. The image processor produces high-resolution 24.3 MP still images and full HD video for professional aerial data collection.

  • RedEdge Multi-Spectral
    The MicaSense RedEdge™ is an advanced, lightweight, multispectral camera optimized for use on small unmanned aircraft systems. RedEdge™ provides accurate multi-band data for agricultural remote sensing applications.

  • Leptron GeoReferencer
    The GeoReferencer is a camera add-on that uses its onboard GPS to provide a stand-alone geotagging and triggering solution. It easily integrates the Sony Alpha a6000 for a best-in-class aerial data collection solution.

Stabilized Single-Camera Gimbal with GoPro Hero4 BlackStabilized Single-Camera Gimbal

Stabilized Dual-Camera Gimbal with Infrared and GoPro Hero4 CamerasStabilized Dual-Camera Gimbal with Infrared and GoPro Hero4 Cameras

Fixed Sony A6000-Camera GimbalFixed Sony Alpha a6000 Camera Mount

RedEdge Multi-Spectral CameraRedEdge Multi-Spectral Camera

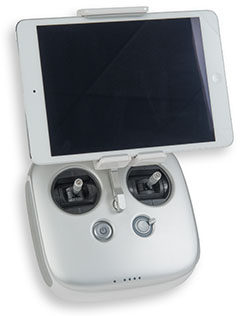

  • RDASS HD Controller
    The RDASS HD Controller provides fine-tuned navigation command and preprogrammed switchology putting the pilot in complete control. The ergonomic design makes aircraft operation simple and reduces fatigue.
    Leptron has integrated a 7" tablet onto the RDASS HD Controller that simultaneously displays high resolution video and aircraft flight data. The custom adjustable carbon fiber support brackets provide ergonomic viewing and unobstructed aircraft control.

  • 12" HD HiBright Display
    The Leptron HD HiBright monitor provides superior visibility of both HD video and flight data information transmitted wirelessly from the RDASS. Featuring HiBright technology, flight details are easily observed in all lighting environments. The carbon fiber exterior offers a one-of-a-kind look and rugged, impact-resistant protection.

  • Additional Video HDMI Out
    The Leptron Additional Video HDMI Out will securely streams video and flight data information from the RDASS HD to any HDMI compatible monitor that is within operating range of the aircraft.

  • Additional Video Ethernet Out
    The Leptron Additional Video Ethernet Out securely stream video and flight data to remote viewing monitors. Simply log-in to control and configure live video streams from any location with web access and a standard web browsing application.

  • Ground Control Station
    The Leptron Ground Control Station (GCS) compliments the RDASS HD with autonomous (autopilot) flight capability. The intuitive PC interface makes flight planning simple. Pilots can create custom flight plans, recall saved flights or select from existing templets. The Leptron GCS is easy to learn and provides any operator access to autonomous aerial data acquisition.

  • Navigation Lighting
    Leptron designed the aircraft navigation light ring to assist with maintaining visual orientation and position of the RDASS HD during both day and night operations. The pilot can select between strobe or steady illumination. The LEDs are bright and low power consuming.

  • Emergency Lighting
    Designed for emergency responders, the RDASS HD can be equipped with the blue & red strobe to assist with aircraft positioning and signal that help is on the way.

RDASS HD Controller with 7 in. Display
RDASS HD Controller with 7" Display

12 in. HiBright Display12" HiBright Display

Additional Video Ethernet Out
Additional Video Ethernet Out

Ground Control StationGround Control Station

Navigation Lighting
Navigation Lighting

Emergency Lighting
Emergency Lighting



Adobe® Reader® is required

> Specifications PDF
> Leptron HD RDASS Aircraft Flight Manual
> Leptron RDASS HD2 Aircraft Flight Manual



See what the RDASS™ HD can do

RDASS™ Overview:   The Leptron RDASS™ HD offers simplicity with a single case for the helicopter drone, video, spare batteries and charger. The system offers stunning HD video and the video is from an RDASS taking video of both an Avenger and an RDASS in the air.

RDASS™ Industrial Use:  The Leptron RDASS™ HD is used for industrial safety inspections, quarry blasting and topographic mapping. The system utilizes a full autopilot in high winds and extreme conditions with a live HD camera view.

RDASS™ Law Enforcement:   The Leptron RDASS™ offers simplicity and portability for law enforcement. The system can be hand launched or landed. The system offers up close views and the ability to offer views for SWAT, accident scene reconstruction, search and rescue among many.

RDASS™ Commercial:  The RDASS 4 is used by an aerial photography company with a stabilized camera gimbal and GoPro 3. The system was flown in fully autonomous mode with GPS autopilot mode from a wireless controller and by a novice pilot. The system has a real time video system with a heads up display that indicates on-screen data for altitude, satellites, signal strength and battery strength.

RDASS™ Real Estate:   The Leptron RDASS™ HD is used for aerial photography with a stabilized camera gimbal and GoPro to produce stunning HD photos and video. The simple and easy system can record views and viewpoints that were previously un-attainable.
